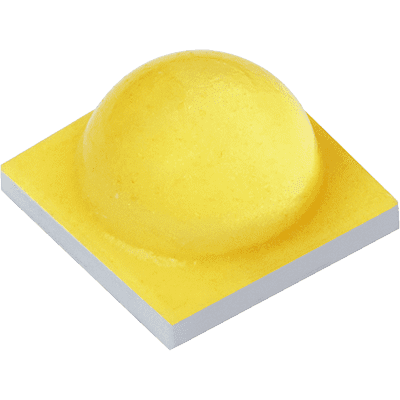

SZ5-M5-WW-C7/3H - Seoul Semiconductor

SZ5-M5-WW-C7/3H
High-Power LED | SMD | 3535 | 2700 K | CRI >70
Type: High Performance LED
Color: Warm White
Binning: 3 step
Vf: 2,95 V
Manufacturer:
Productgroup: High-Power LEDsHigh-Power LEDs
Part Number: SZ5-M5-WW-C7/3H
Series: Z5-M5
Datasheet: PDF SZ5-M5-WW-C7/3H | Seoul SemiconductorOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

LED-series: Z5M5
Color: Warm White
CCT : 2700 K
CRI: 70
Luminous intensity typ. : 155972 mcd
Luminous flux typ. : 490 lm
Luminous efficiency typ. : 158 lm/W
Power typ. : 3.1 W
Vf typ. : 2.95 V
If : 1050 mA
If max. : 3000 mA
Viewing angle : 120 °
Hi-Rel: No
  Length: 3.5 mm
  Width: 3.5 mm
  Heigth: 2.2 mm
  Min. operating temperature: -40 °C
  Max. operating temperature: 105 °C
  Chassis: SMD 3535

Hint: current revision of the supplier datasheet is applicable
