mSATA SSDs

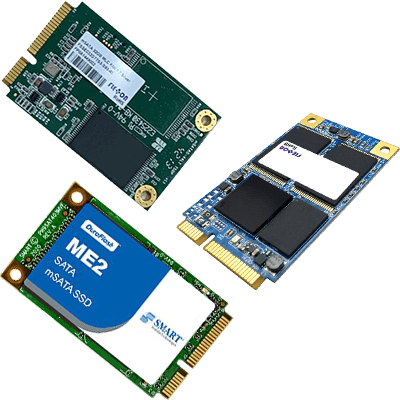

mSATA SSDs (mini SATA SSDs) are a popular storage solution for e.g. mobile devices, kiosks or POS devices due to their compact format and low power consumption. Our mSATA SSDs are available in different flash memory types and various capacities. For industrial applications, SSDs with an operating temperature range from -40C° to +85C° are also available.

	Product	Manufacturer	Series	Form Factor	Memory Type	Interface	Capacity	Write Performance	Read Performance	Operating Voltage	MTBF	Shock Resistance	Vibration Resistance	Industrie	Medical	Military	Power Loss Protection	Length	Width	Heigth	Min. operating temperature	Max. operating temperature

Note

Artikel	Manufacturer	Series	Form Factor	Memory Type	Interface	Capacity	Write Performance	Read Performance	Operating Voltage	MTBF	Shock Resistance	Vibration Resistance	Industrie	Medical	Military	Power Loss Protection	Length	Width	Heigth	Min. operating temperature	Max. operating temperature
FSSE001TBC-SB00 SATA III - mSATA SSD XTREME 3D TLC 1TB Commercial	Flexxon	XTREME	mSATA	3D TLC	SATA III 6Gbps	1000 GB	500 MB/s	550 MB/s	3.3 V	2000000	1500G/0.5ms	80Hz ~ 2000Hz/20G	No	No	No	No	50.8 mm	29.85 mm	4 mm	- °C	70 °C
FSSE001TBE-M500 SATA III - mSATA SSD - INSPIRE 3D TLC 1TB Diamond	Flexxon	INSPIRE	mSATA	3D TLC	SATA III 6Gbps	1000 GB	528 MB/s	560 MB/s	3.3 V	2000000	1500G/0.5ms	80Hz ~ 2000Hz/20G	Yes	No	No	No	50.8 mm	29.85 mm	3.83 mm	-40 °C	85 °C
FSSE001TBE-M50P SATA III - mSATA SSD - (PLP) 3D TLC 1TB Diamond	Flexxon	INSPIRE	mSATA	3D TLC	SATA III 6Gbps	1000 GB	528 MB/s	560 MB/s	3.3 V	2000000	1500G/0.5ms	80Hz ~ 2000Hz/20G	Yes	No	No	Yes	50.8 mm	29.85 mm	3.83 mm	-40 °C	85 °C
FSSE001TBE-SB00 SATA III - mSATA SSD XTREME 3D TLC 1TB Diamond	Flexxon	XTREME	mSATA	3D TLC	SATA III 6Gbps	1000 GB	500 MB/s	550 MB/s	3.3 V	2000000	1500G/0.5ms	80Hz ~ 2000Hz/20G	Yes	No	No	No	50.8 mm	29.85 mm	4 mm	-40 °C	85 °C
FSSE001TBS-M500 SATA III - mSATA SSD - INSPIRE 3D TLC 1TB Silver	Flexxon	INSPIRE	mSATA	3D TLC	SATA III 6Gbps	1000 GB	528 MB/s	560 MB/s	3.3 V	2000000	1500G/0.5ms	80Hz ~ 2000Hz/20G	Yes	No	No	No	50.8 mm	29.85 mm	3.83 mm	- °C	70 °C
FSSE001TBS-M50P SATA III - mSATA SSD - (PLP) 3D TLC 1TB Silver	Flexxon	INSPIRE	mSATA	3D TLC	SATA III 6Gbps	1000 GB	528 MB/s	560 MB/s	3.3 V	2000000	1500G/0.5ms	80Hz ~ 2000Hz/20G	Yes	No	No	Yes	50.8 mm	29.85 mm	3.83 mm	- °C	70 °C
FSSE001TBS-SB00 SATA III - mSATA SSD XTREME 3D-NAND TLC 1TB Silver	Flexxon	XTREME	mSATA	3D TLC	SATA III 6Gbps	1000 GB	500 MB/s	550 MB/s	3.3 V	2000000	1500G/0.5ms	80Hz ~ 2000Hz/20G	Yes	No	No	No	50.8 mm	29.85 mm	4 mm	- °C	70 °C
FSSE002GSE-M400 VALUE mSATA SSD SLC 2GB Diamond	Flexxon	VALUE	mSATA	SLC	SATA II 3Gbps	2 GB	30 MB/s	40 MB/s	3.3 V	2000000	1500G/0.5ms	80Hz ~ 2000Hz/20G	Yes	No	No	No	50.95 mm	30 mm	3.3 mm	-40 °C	85 °C
FSSE002GSS-M400 VALUE mSATA SSD SLC 2GB Silver	Flexxon	VALUE	mSATA	SLC	SATA II 3Gbps	2 GB	30 MB/s	40 MB/s	3.3 V	2000000	1500G/0.5ms	80Hz ~ 2000Hz/20G	Yes	No	No	No	50.95 mm	30 mm	3.3 mm	- °C	70 °C
FSSE004GPE-M100 SATA III - mSATA SSD ACHIEVER pSLC 4GB Diamond	Flexxon	ACHIEVER	mSATA	pSLC	SATA III 6Gbps	4 GB	63 MB/s	148 MB/s	3.3 V	2000000	1500G/0.5ms	80Hz ~ 2000Hz/20G	Yes	No	No	No	50.8 mm	29.85 mm	3.83 mm	-40 °C	85 °C
FSSE004GPS-M100 SATA III - mSATA SSD ACHIEVER pSLC 4GB Silver	Flexxon	ACHIEVER	mSATA	pSLC	SATA III 6Gbps	4 GB	63 MB/s	148 MB/s	3.3 V	2000000	1500G/0.5ms	80Hz ~ 2000Hz/20G	Yes	No	No	No	50.8 mm	29.85 mm	3.83 mm	- °C	70 °C
FSSE004GSE-M100 SATA III - mSATA SSD ACHIEVER SLC 4GB Diamond	Flexxon	ACHIEVER	mSATA	SLC	SATA III 6Gbps	4 GB	36 MB/s	42 MB/s	3.3 V	2000000	1500G/0.5ms	80Hz ~ 2000Hz/20G	Yes	No	No	No	50.8 mm	29.85 mm	3.83 mm	-40 °C	85 °C

Hint: current revision of the supplier datasheet is applicable

Design-In Support

Do you have questions about our mSATA SSDs products or are you looking for alternatives? As an authorized distributor, we maintain a very close exchange with our manufacturers and will be happy to advise you on the selection of suitable components and possible adaptations with our many years of experience. Talk to us!
