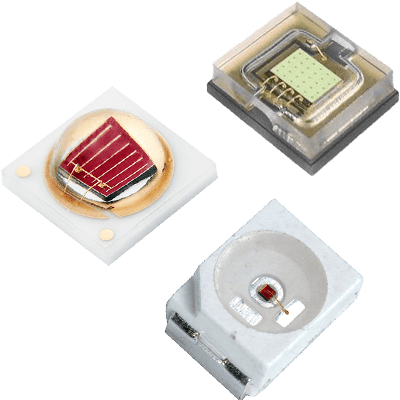

Colored LEDs

Find the right colored LED with the desired light wavelength according to your requirements as SMD or THT with us. Our portfolio includes colors e.g. in red, green, blue, yellow, amber or turquoise as well as gradations in e.g. dark red or deep red. If you do not find what you are looking for online, please do not hesitate to contact us. We are sure to have the right colored LED for your application.

Categories of Colored LEDs

· High-Power LEDs

· Mid-Power LEDs

· Low-Power LEDs

· LEDs Wired (THT)

	Product	Manufacturer	LED-series	Color	Wavelength	Luminous intensity typ.	Luminous flux typ.	Luminous efficiency typ.	Power typ.	Vf typ.	If	If max.	Viewing angle	PPF	Hi-Rel	Chassis	Length	Width	Heigth	Min. operating temperature	Max. operating temperature

Note

Artikel	Manufacturer	LED-series	Color	Wavelength	Luminous intensity typ.	Luminous flux typ.	Luminous efficiency typ.	Power typ.	Vf typ.	If	If max.	Viewing angle	PPF	Hi-Rel	Chassis	Length	Width	Heigth	Min. operating temperature	Max. operating temperature
LHRF9033 Low-Power LED \| THT \| Rot \| 630 nm	Neumueller	-	Red	630 nm	330 mcd	-	-	0.04 W	1.95 V	20 mA	30 mA	20 °	-	No	-	-	-	-	-	-
NMOP-10096-G-TR2 LED Grün	Neumueller	-	Grün	525 nm	4400 mcd	-	-	-	-	100 mA	30 mA	-	-	No	-	2 mm	2.5 mm	2.8 mm	-20 °C	80 °C
NMOP-10105-1 Low-Power LED \| SMD \| 1706 \| Rot \| 632 nm	Neumueller	1706	Red	632 nm	180 mcd	-	-	0.04 W	2 V	20 mA	60 mA	130 °	-	No	-	-	-	-	-	-
NMOP-10118-E Low-Power LED \| SMD \| PLCC2 \| Rot \| 622 nm	Neumueller	PLCC2	Red	622 nm	20 mcd	-	-	0.06 W	2.2 V	25 mA	120 mA	120 °	-	No	-	-	-	-	-	-
NMOP-10118-G Low-Power LED \| SMD \| PLCC2 \| Grasgrün \| 569 nm	Neumueller	PLCC2	Green	569 nm	2 mcd	-	-	0.05 W	2.1 V	25 mA	120 mA	120 °	-	No	-	-	-	-	-	-
NMOP-10118-Y Low-Power LED \| SMD \| PLCC2 \| Gelb \| 587 nm	Neumueller	PLCC2	Yellow	587 nm	1 mcd	-	-	0.05 W	2 V	25 mA	80 mA	120 °	-	No	-	-	-	-	-	-
NMOP-10119 Mid-Power LED \| SMD \| 3020 \| Rot \| 625 nm	Neumueller	3020	Red	625 nm	8000 mcd	-	-	0.38 W	2.5 V	150 mA	300 mA	120 °	-	No	-	-	-	-	-	-
NMOP-10121 Low-Power LED \| THT \| 5mm \| Grün \| 565 nm	Neumueller	5mm	Green	565 nm	30 mcd	-	-	0.08 W	2.6 V	30 mA	120 mA	68 °	-	No	-	-	-	-	-40 °C	85 °C
NMOP-10122 Low-Power LED \| SMD \| 1608 \| Gelb \| 590 nm	Neumueller	1608	Yellow	590 nm	380 mcd	-	-	0.07 W	2.6 V	25 mA	90 mA	130 °	-	No	-	-	-	-	-	-
NMOP-10123 Low-Power LED \| THT \| 5mm \| Rot \| 625 nm	Neumueller	5mm	Red	625 nm	9500 mcd	-	-	0.07 W	2.2 V	30 mA	60 mA	15 °	-	No	-	-	-	-	-40 °C	85 °C
NMOP-10124 Low-Power LED \| THT \| 5mm \| Gelb \| 585-592 nm	Neumueller	5mm	Yellow	590 nm	7700 mcd	-	-	0.07 W	2.2 V	30 mA	60 mA	30 °	-	No	-	-	-	-	-40 °C	85 °C
NMOP-10125 Low-Power LED \| THT \| 5mm \| Gelb \| 590 nm	Neumueller	5mm	Yellow	590 nm	14000 mcd	-	-	0.07 W	2.2 V	30 mA	60 mA	30 °	-	No	-	-	-	-	-40 °C	85 °C

Hint: current revision of the supplier datasheet is applicable

Design-In Support

Do you have questions about our Colored LEDs products or are you looking for alternatives? As an authorized distributor, we maintain a very close exchange with our manufacturers and will be happy to advise you on the selection of suitable components and possible adaptations with our many years of experience. Talk to us!
