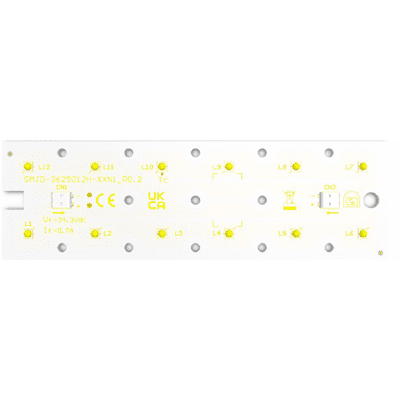

SMJD-3625012H-XXN1/5E - Seoul Semiconductor

SMJD-3625012H-XXN1/5E
LED Module | 146,6x45 mm | 4000 K | 24 W | CRI 70
Binning: 5 step
LED placement: 2x6 Z5-M4
Color: Natural White
Voltage: 34 VDC
ZHAGA
Manufacturer:
Productgroup: LED ModulesLED Modules
Part Number: SMJD-3625012H-XXN1/5E
Series: Z5-M4-Module
Datasheet: PDF SMJD-3625012H-XXN1/5E | Seoul SemiconductorOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

style: DC LED Module
No. of LEDs: 12
color: Natural White
CCT : 4000 K
luminous flux : 4010 lm
CRI: 70
supply voltage : 34.3 V
driving curent : 700 mA
driving mode: Constant Current
Zhaga: Yes
ZHAGA Book: 19
connection: SMD Terminal
  Length: 146.6 mm
  Width: 45 mm
  Heigth: 1.6 mm
  Min. operating temperature: -30 °C
  Max. operating temperature: 105 °C

Hint: current revision of the supplier datasheet is applicable
