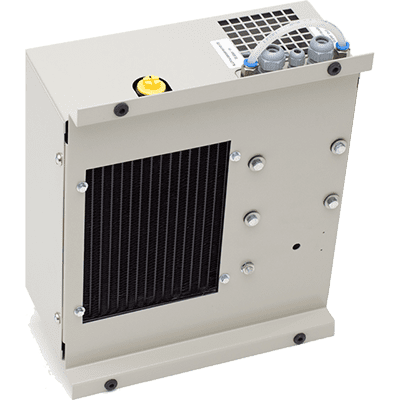

WL500 - Laird Thermal Systems

WL500
Liquid Cooling System | Liquid-To-Air | 500 W
The WL500 is a water cooling heat exchanger that circulate water or a water glycol (antifreeze) mixture to keep the coolant temperature at or near ambient. The liquid cooler is recirculating liquid to air heat exchangers that use a high-pressure pump to assure maximum flow rate and remove large amounts of heat from a liquid circuit. Coolant heat is absorbed by a heat exchanger and dissipated into the ambient environment using a brand name fan. The liquid cooler has a cooling capacity of 500 W.

Features:
- Cooling to ambient
- High heat pumping capacity
- Compact form factor
- Long life operation

Laird Part Number: 1505.00
Manufacturer:
Productgroup: Liquid Cooling SystemsLiquid Cooling Systems
Part Number: WL500
Series: WL
Datasheet: PDF WL500 | Laird Thermal SystemsOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Qc Max : 500 W
Flow Rate: 2.3 L/min @ 2.7 bar
Supply Voltage : 230 V
Pump: High-Pressure
Heat transfer type : Liquid-To-Air
Heat transfer cold side: Convection
Heat transfer hot side: Convection
  Length: 307 mm
  Width: 370 mm
  Heigth: 151 mm
  Min. operating temperature: 5 °C
  Max. operating temperature: 40 °C

Hint: current revision of the supplier datasheet is applicable
