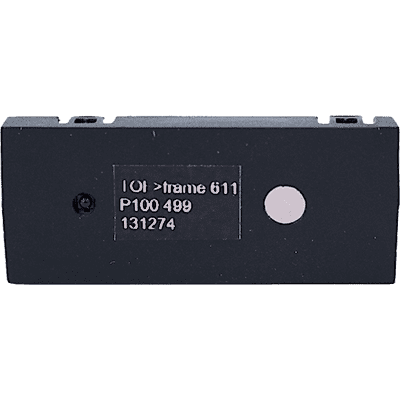

TOFcam-611 - ESPROS Photonics Corporation

TOFcam-611
3D Time of Flight Camera | 0,1-3 m
Miniaturized 3D Camera
Distance: 0,1m ... 3m
Accuracy: +-4 cm
Resolution: 8 x 8 Pixel
Field of view: 12° horizontal and vertical
Frame rate: up to 80fps
Ambient light supression: 100kLux
Integrated ilumination
Interface: High Speed UART (1 Mbit/s), USB via adapter
Temperature range: -20°C ... +85°C
Manufacturer:
Productgroup: TOF camerasTOF cameras
Part Number: TOFcam-611
Datasheet: PDF TOFcam-611 | ESPROS Photonics CorporationOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Max. Distance : 300 cm
Resolution : 8x8 Pixel
Interface: UART | USB
Field of view: 12x12°
Max. Frame rate : 68 fps
  Length: 39.6 mm
  Width: 16.3 mm
  Heigth: 8 mm
  Min. operating temperature: -20 °C
  Max. operating temperature: 85 °C

Hint: current revision of the supplier datasheet is applicable
