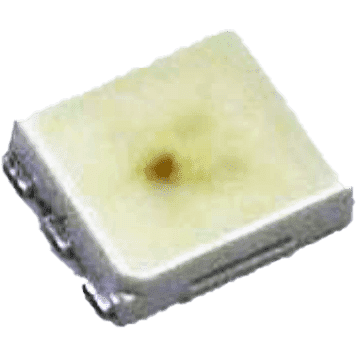

STF0A36B - Seoul Semiconductor

STF0A36B
Low-Power LED | SMD | 3528 B | RGB | 625/525/457nm
Type: Top-View RGB LED
R = 625 nm
G = 525 nm
B = 457 nm
Manufacturer:
Productgroup: Low-Power LEDsLow-Power LEDs
Part Number: STF0A36B
Series: TopView
Datasheet: PDF STF0A36B | Seoul SemiconductorOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

LED-series: 3528
Color: RGB
Wavelength : 625/525/457 nm
Luminous intensity typ. : 637 mcd
Luminous flux typ. : 2 lm
Luminous efficiency typ. : 32 lm/W
Power typ. : 0.06 W
Vf typ. : 3.15 V
If : 20 mA
If max. : 100 mA
Viewing angle : 120 °
Hi-Rel: No
  Length: 3.5 mm
  Width: 2.8 mm
  Heigth: 0.7 mm
  Min. operating temperature: -40 °C
  Max. operating temperature: 100 °C
  Chassis: SMD 3528

Hint: current revision of the supplier datasheet is applicable
