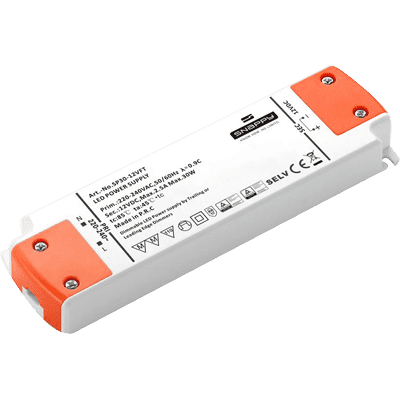

SP30-12VFT - Neumüller Elektronik GmbH

SP30-12VFT
LED Power Supply | 30 W | 12 V | CV | Triac dimm.
Manufacturer:
Productgroup: LED Drivers & LED Power SuppliesLED Drivers & LED Power Supplies
Part Number: SP30-12VFT
Series: SP
Datasheet: PDF SP30-12VFT | Neumüller Elektronik GmbHOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Operating mode: Constant Voltage
Performance class ≤ : 30 W
Output current : 2500 mA
LED voltage : 12 VDC
Input voltage : 220 - 240 VAC
Dimmable: Yes
Control: TRIAC
Programmable: No
Remote Gear: No
ENEC: No
tc : 80 °C
Protection type : 20 IP
Power factor >: 0.9
  Length: 158 mm
  Width: 45.8 mm
  Heigth: 18.3 mm
  Min. operating temperature: -20 °C
  Max. operating temperature: 45 °C

Hint: current revision of the supplier datasheet is applicable
