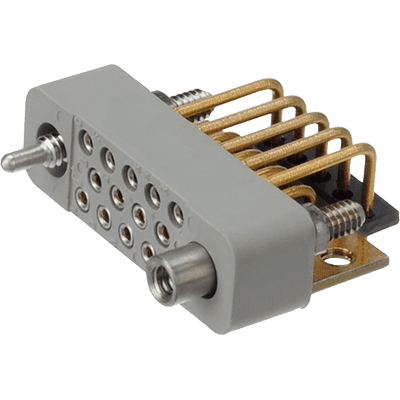

SMPL Serie - Positronic

SMPL Serie
Rectangular Connectors Mini-Rectangular
The SMPL series is part of the Mini-Rectangular family of high density connectors for rack & panel applications. SMPL series connectors offer size 22 machined contacts & right angle solder termination.
Manufacturer:
Productgroup: Rectangular connectorsRectangular connectors
Part Number: SMPL Serie
Series: Mini-Rectangular
Datasheet: PDF SMPL Serie | PositronicOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Series: Mini-Rectangular
Working Voltage : 250 V rms
Contact Current Rating : 5 A
Contact Retention : 26 N
Mating Cycles: 1000
Insulator Resistance : 5 GΩ
Performance Level: Industry | Military | Aero
Insulator Material: DAP
Proof Voltage : 2200 V rms
Flammability Rating UL 94V-0: Yes
Hi-Rel: Yes
Modular: No
Hermetic: No
Waterproof (IP67, IP68, ...): No
Contact Resistance (max) : 4 mΩ

Hint: current revision of the supplier datasheet is applicable
