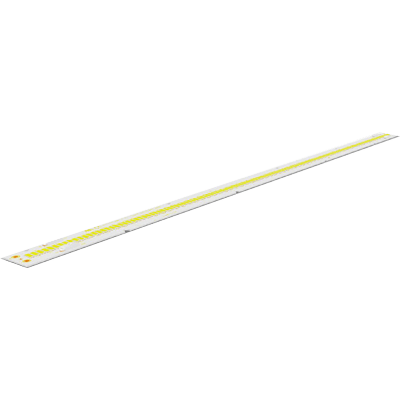

SMJD-3624144B-XXN1/3C - Seoul Semiconductor

SMJD-3624144B-XXN1/3C
LED Module | 560x20 mm | 5000 K | 22 W | CRI 80
Binning: 3 step
LED placement: 1x144 5630D-E3
Color: Cool White
Voltage: 34 VDC
ZHAGA
Manufacturer:
Productgroup: LED ModulesLED Modules
Part Number: SMJD-3624144B-XXN1/3C
Series: 5630-Module
Datasheet: PDF SMJD-3624144B-XXN1/3C | Seoul SemiconductorOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

style: Linear HE Module
No. of LEDs: 144
color: Cool White
CCT : 5000 K
luminous flux : 4350 lm
CRI: 80
supply voltage : 34 V
driving curent : 660 mA
driving mode: Constant Current
Zhaga: Yes
ZHAGA Book: 7
connection: SMD Terminal
  Length: 560 mm
  Width: 20 mm
  Heigth: 5.5 mm
  Min. operating temperature: -30 °C
  Max. operating temperature: 85 °C

Hint: current revision of the supplier datasheet is applicable
