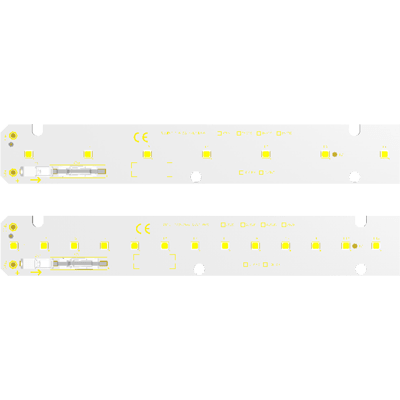

SMJD-1103012G-XXN1/4E - Seoul Semiconductor

SMJD-1103012G-XXN1/4E
LED Module | 279x23,6 mm | 3985 K | 3 W | CRI 80
Binning: 3 step
LED placement: 1x12 3030
Color: Natural White
Voltage: 10 VDC
ZHAGA
Manufacturer:
Productgroup: LED ModulesLED Modules
Part Number: SMJD-1103012G-XXN1/4E
Series: 3030C-Module
Datasheet: PDF SMJD-1103012G-XXN1/4E | Seoul SemiconductorOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

style: DC LED Module
No. of LEDs: 12
color: Natural White
CCT : 3985 K
luminous flux : 610 lm
CRI: 80
supply voltage : 10.9 V
driving curent : 275 mA
driving mode: Constant Current
Zhaga: Yes
ZHAGA Book: 7
connection: SMD Terminal
  Length: 279 mm
  Width: 23.6 mm
  Heigth: 6.1 mm
  Min. operating temperature: -40 °C
  Max. operating temperature: 85 °C

Hint: current revision of the supplier datasheet is applicable
