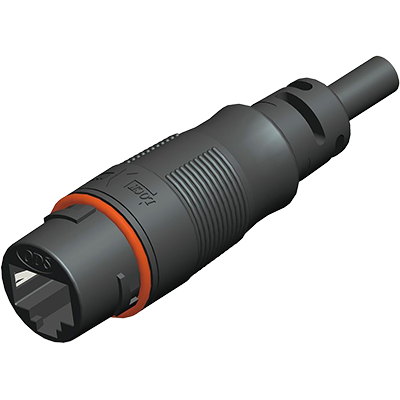

RPSAJ08X5E-KLC7XXX - ODS Electronics

RPSAJ08X5E-KLC7XXX
RJ45 Connector Cable Assembly Straight
• Cat 5e shielded RJ45 interface
• Data rate up to 100MHz
• 94V-0, (f1) Flame Retardant
• 3-Point Lock mating style
• Connector OD: 20.0mm
• IPX7 rated for harsh environments
• Up to 1,000 mating cycles

Part Numbers:
RPSAJ08N5E-KLC7DXX
RPSAJ08G5E-KL
Manufacturer:
Productgroup: RJ45 ConnectorsRJ45 Connectors
Part Number: RPSAJ08X5E-KLC7XXX
Series: RPS
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Categorie: Cat5e
Working Voltage : 48 V rms
Contact Current Rating : 1 A
Shield Type: Unshielded | Shielded Pin
Insulator Material: Plastic
Gender: Jack
Locking System/Mating Style: 3-Point (RJ45 Quick Lock)
Assemble Type: Cable End Cut
Waterproof (IP67, IP68, ...): Yes
  Min. operating temperature: -40 °C
  Max. operating temperature: 85 °C

Hint: current revision of the supplier datasheet is applicable
