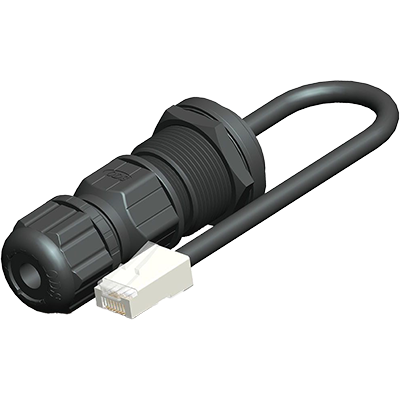

RPCPJ08G5E-SCS7001 - ODS Electronics

RPCPJ08G5E-SCS7001
RJ45 Receptacle Front Circular Seat
• Cat 5e shielded RJ45 interface
• Data rate up to 100M Hz
• 94V-0, (fl) Flame Retardant
• Screw Thread mating style
• IPX8 rated for harsh environments
• Panel Feed Thru-Accessory
• Cable OD: Ø5.5 - Ø7.0mm
• Up to 1,000 mating cycles
Manufacturer:
Productgroup: RJ45 ConnectorsRJ45 Connectors
Part Number: RPCPJ08G5E-SCS7001
Series: RPC
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Categorie: Cat5e
Working Voltage : 48 | 56 V rms
Contact Current Rating : 1 | 2 A
Shield Type: Shielded Pin
Insulator Material: Plastic
Gender: Jack
Locking System/Mating Style: Screw
Assemble Type: Cable End Plug
Waterproof (IP67, IP68, ...): Yes
  Min. operating temperature: -40 °C
  Max. operating temperature: 105 °C

Hint: current revision of the supplier datasheet is applicable
