RMCPJ08GXX-SCS8001 - ODS Electronics

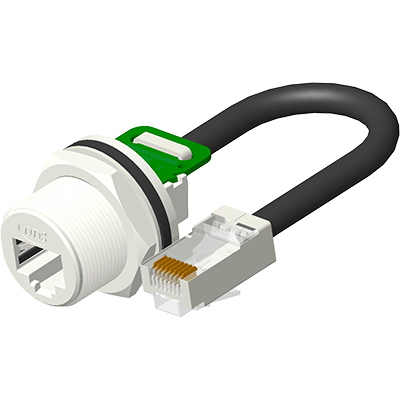

RMCPJ08GXX-SCS8001
RJ45 Receptacle Front Circular Seat
• Cat 5e & Cat 6 shielded/unshielded RJ45 interface
• Data rate up to 100MHz
• 94V-0, (f1) Flame Retardant
• Screw Thread mating style
• IPX8 rated for harsh environments
• With pre-terminated RJ45 Plug-end
• Up to 1,000 mating cycles

Part Numbers
Manufacturer:
Productgroup: RJ45 ConnectorsRJ45 Connectors
Part Number: RMCPJ08GXX-SCS8001
Series: RMC
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Categorie: Cat5e | Cat6
Working Voltage : 48 | 56 V rms
Contact Current Rating : 1 | 2 A
Shield Type: Shielded Shell
Insulator Material: Metal
Gender: Jack
Locking System/Mating Style: Screw
Assemble Type: Cable End Plug
Waterproof (IP67, IP68, ...): Yes
  Min. operating temperature: -40 °C
  Max. operating temperature: 105 °C

Hint: current revision of the supplier datasheet is applicable
