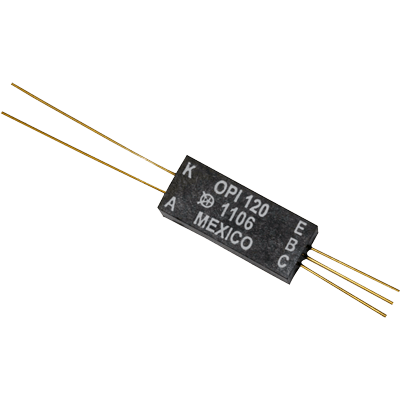

OPI120 - OPTEK Technology

OPI120
Optocoupler, Phototransistor-Output, 15kV
The OPI120 high voltage optoisolator contains an 890 nm infrared Light Emitting Diode (LED) and a NPN silicon Photosensor. The device is sealed in a precast opaque housing with a optically transmissive path between the LED and the photosensor.

Features:
- 15 kV electrical isolation
- Hermetically sealed LED and photosensor
- Base contact for conventional transistor biasing
- UL recognized File No. E58730
- Wide operating temperature range
Manufacturer:
Brand: /Content/img/company/TT-optek.pngOPTEK Technology
Productgroup: OptocouplersOptocouplers
Part Number: OPI120
Series: OPI120
Datasheet: PDF OPI120 | OPTEK TechnologyOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Output Type: Phototransistor
Channels: 1
PINs: 5
Isolation Voltage : 15000 Vrms
Rise Time : 2 µs
Fall Time : 2 µs
CTR Min : 20 %
Input Current Type: DC
Forward Current typ. : 10 mA
Forward Current max. : 50 mA
Hi-Rel: No
High Speed: No
High Voltage: Yes
  Length: 19.05 mm
  Width: 7.87 mm
  Heigth: 7.87 mm
  Min. operating temperature: -55 °C
  Max. operating temperature: 100 °C
  Chassis: Axial

Hint: current revision of the supplier datasheet is applicable
