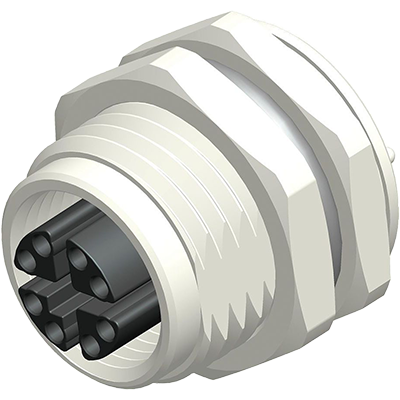

MMKPF08FKK-SHXP8001 - ODS Electronics

MMKPF08FKK-SHXP8001
Sensor Receptacle Front Hexagonal Seat
• IEC compliant M12 X-coded panel mount receptacles in PG9 Thread
• Available in dip solder or thru-hole (THT) contacts
• 4 twin data transmission up to 10 Gbit/s
• IPX8 rated for harsh environments

Product parts:
MMKPF08FKK-SHS8001
MMKPF08FKK-SHP800
Manufacturer:
Productgroup: Sensor ConnectorsSensor Connectors
Part Number: MMKPF08FKK-SHXP8001
Series: MM
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Coding: X Code
Size: M12
Working Voltage : 50 V rms
Contact Current Rating : 5 A
Contacts: 8
Gender: Female
Locking System/Mating Style: Screw
Assemble Type: PCB Straight | Solder
Insulator Material: Metal
Waterproof (IP67, IP68, ...): Yes
  Min. operating temperature: -40 °C
  Max. operating temperature: 90 °C

Hint: current revision of the supplier datasheet is applicable
