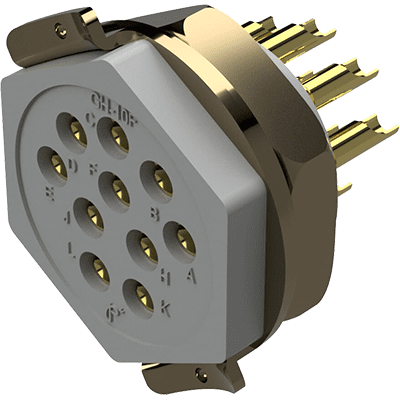

GH Serie - Positronic

GH Serie
Circular Connectors
The GH series is a part of the Circle Hex family for legacy avionics applications. GH series is a miniature form factor connector series.
Manufacturer:
Productgroup: Round ConnectorsRound Connectors
Part Number: GH Serie
Series: Circle Hex
Datasheet: PDF GH Serie | PositronicOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Series: Circle Hex
Working Voltage (V rms): 600
Contact Current Rating : 7.5 A
Contact Retention : 44 N
Mating Cycles: 500
Insulator Resistance : 5 GΩ
Performance Level: Industry | Military | Aero
Insulator Material: DAP
Proof Voltage : 1750 V rms
Flammability Rating UL 94V-0: Yes
Hi-Rel: Yes
Modular: No
Hermetic: No
Waterproof (IP67, IP68, ...): No
Contact Resistance (max) : 10 mΩ

Hint: current revision of the supplier datasheet is applicable
