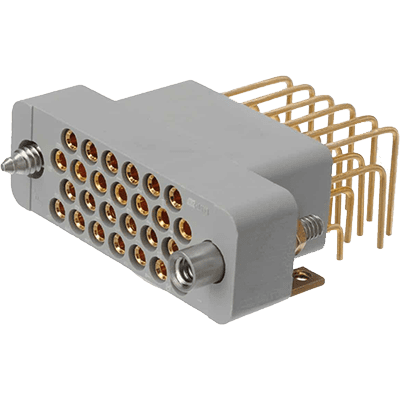

GAPL Serie - Positronic

GAPL Serie
Rectangular Connectors Rugged Rack & Panel
The GAPL series is part of the Rugged Rack & Panel family of robust connectors for rack & panel applications. GAPL series connectors feature right angle solder termination.
Manufacturer:
Productgroup: Rectangular connectorsRectangular connectors
Part Number: GAPL Serie
Series: Rugged Rack & Panel
Datasheet: PDF GAPL Serie | PositronicOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Series: Rugged Rack & Panel
Working Voltage : 250 V rms
Contact Current Rating : 7.5 A
Contact Retention : 44 N
Mating Cycles: 1000
Insulator Resistance : 5 GΩ
Performance Level: Industry | Military | Aero
Insulator Material: DAP
Proof Voltage : 25000 V rms
Flammability Rating UL 94V-0: Yes
Hi-Rel: Yes
Modular: No
Hermetic: No
Waterproof (IP67, IP68, ...): No
Contact Resistance (max) : 3 mΩ

Hint: current revision of the supplier datasheet is applicable
