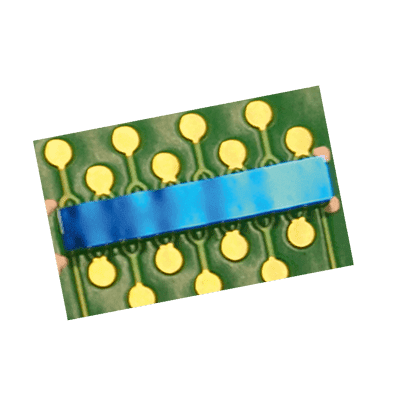

EPC905-CSP32-033 - ESPROS Photonics Corporation

EPC905-CSP32-033
CCD Line Imager | 128x1 Pixel
Frame rate: 143000fps @ 25% magnitude
Full-well capacity: min. 400ke-
Pixel pitch: 30µm
Pixel length: 120µm
Output mode: Differential / single ended
Bus interface: I²C
Package: CSP32
Size: 8,00x1,30x0,23mm
Manufacturer:
Productgroup: Line ImagersLine Imagers
Part Number: EPC905-CSP32-033
Series: EPC901
Datasheet: PDF EPC905-CSP32-033 | ESPROS Photonics CorporationOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

No. of Pixels : 128x1 Pixel
Interface: analogue, serial
Vdd : 3 VDC
  Length: 8 mm
  Width: 1.3 mm
  Heigth: 0.23 mm
  Min. operating temperature: -40 °C
  Max. operating temperature: 85 °C
  Chassis: CSP32

Hint: current revision of the supplier datasheet is applicable
