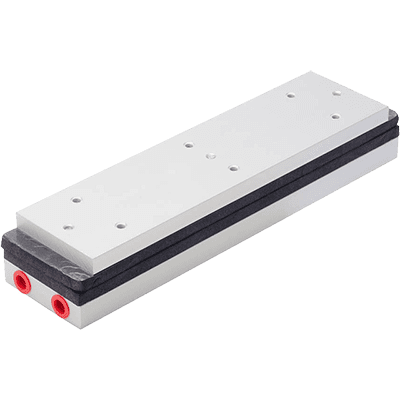

DL-210-24-00 - Laird Thermal Systems

DL-210-24-00
Peltier Cooler | Direct-To-Liquid | 265 W | 24 V
The Liquid DL-210-24-00 peltier cooler has the ability to cool or heat a coolant flowing through a liquid heat exchanger. Turbulators are inserted into the liquid channels of the heat exchanger to improve the heat transfer. Turbulators may be removed to reduce pressure drop and achieve higher liquid flow rates. The thermoelectric cooler has a cooling capacity of 265 W.

Features:
● Compact design
● Precise temperature control
● Reliable solid-state operation
● DC operation

Laird Part Number: DL-210-24-00-00-00
Manufacturer:
Productgroup: Peltier CoolerPeltier Cooler
Part Number: DL-210-24-00
Series: Liquid
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Qc Max : 265 W
ΔT Max : 42 °C
Supply Voltage : 24 V
Heat transfer type : Direct-To-Liquid
Heat transfer cold side: Conduction
Heat transfer hot side: Convection
  Length: 240 mm
  Width: 60 mm
  Heigth: 39 mm
  Min. operating temperature: -40 °C
  Max. operating temperature: 62 °C

Hint: current revision of the supplier datasheet is applicable
