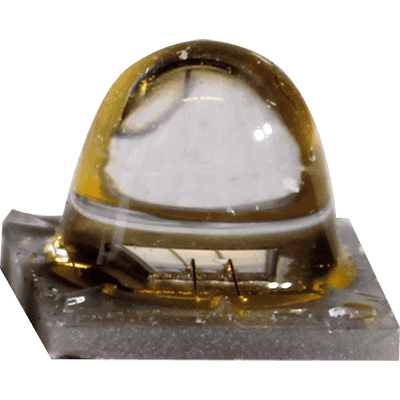

CUN66B1G - Seoul Viosys

	UV-A LED \| 365 nm \| nZ5 \| SMD UV LED Wavelenght: 365nm PO: typ. 2000mW @ 1000mA Vf. typ. 3,7V Package: 3535 Dome, 3,5mm x 3,5mm Viewing angle: 65°
Manufacturer:	Seoul Viosys
Productgroup:	UV-LEDs (SMD)
Part Number:	CUN66B1G
Series:	CUN
Datasheet:	Open datasheet
State:	🟢 Active

Note article

Request article

Technical data

	Type:	SMD
	Wave Length :	365 nm
	UV Range:	UV-A
	Radiant Flux typ. :	2000 mW
	Spectrum Half Width :	9 nm
	If :	1000 mA
	Forward Voltage :	3.7 V
	View Angle :	65 °
	Package Dimensions :	3,5 x 3,5 mm
	Length:	3.5 mm
	Width:	3.5 mm
	Heigth:	2.8 mm
	Min. operating temperature:	-40 °C
	Max. operating temperature:	75 °C
	Chassis:	Z5N

Hint: current revision of the supplier datasheet is applicable
