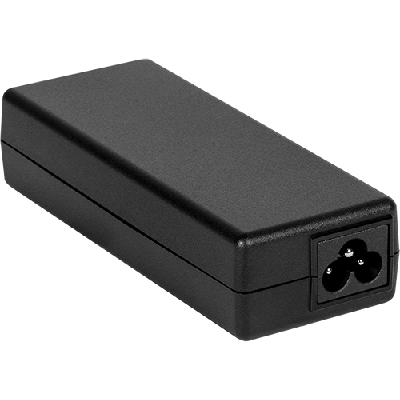

ADT-090A24AAF-A - Delta Electronics

ADT-090A24AAF-A
ITE AC-DC Desktop Power Supply 90W 24VDC "C6"
AC/DC Desktop Power Supply
AC-Plug "C6" - Class I
Input voltage range: 90-264VAC
Output voltage 24VDC
output current 3,75A
Working temperature: 0 - 60°C ( Derating 2,5% / °C >40°C )
DC connector: 2.5 x 5.5 x 11mm; 90° angled; cable length 1800mm
Manufacturer:
Productgroup: Desktop Power SuppliesDesktop Power Supplies
Part Number: ADT-090A24AAF-A
Series: ADT
Datasheet: PDF ADT-090A24AAF-A | Delta ElectronicsOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Type: Desktop
Power : 90 W
Input Voltage : 90 - 264 V
Output Voltage : 24 V
Approvals: Industrial
  Length: 126 mm
  Width: 51 mm
  Heigth: 30 mm
  Min. operating temperature: 0 °C
  Max. operating temperature: 40 °C

Hint: current revision of the supplier datasheet is applicable
