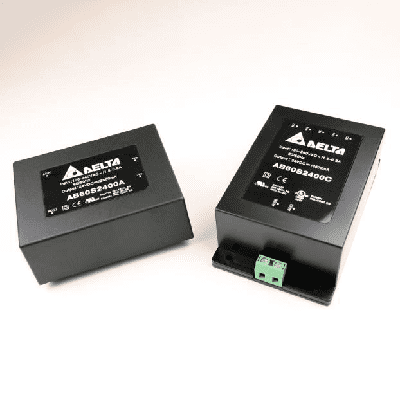

AB60S - Delta Electronics

	Isol. AC/DC \| encapsulated \| PCB Mount \| max 60W Input voltage: 120 - 370VDC Trim range: No Efficiency: max. 88% Fixed frequency: Yes Isolation: max. 4,0kV Variations: Output voltage: 5,1V \| 12V \| 15V \| 24V \| 48V Pin lengh: see datasheet
Manufacturer:	Delta Electronics
Productgroup:	Enclosed Power Supplies
Part Number:	AB60S
Datasheet:	Open datasheet
State:	🟢 Active

Note article

Request article

Technical data

	Type:	Print \| Chassis \| DIN Rail
	Power :	60 W
	Input Voltage :	120 - 370 V
	Output Voltage :	5,1 \| 12 \| 15 \| 24 \| 48 V
	Features:	Encapsulted
	Approvals:	Medical
	Length:	88.9 mm
	Width:	67.5 mm
	Heigth:	34.2 mm
	Min. operating temperature:	-40 °C
	Max. operating temperature:	80 °C

Hint: current revision of the supplier datasheet is applicable
