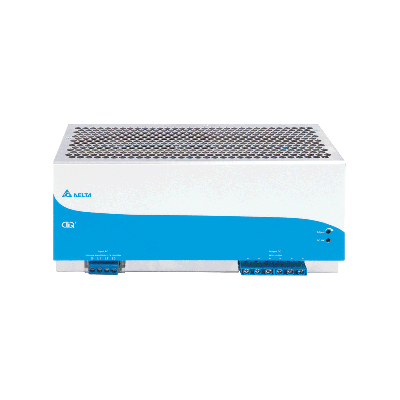

DRP024V960W3BN
CliQ II DIN Rail 960W 24VDC 40A 3-phasig
Product description
Din Rail bzw. Hutschienennetzteil mit universellem
Power Boost von 150% für 5 Sekunden,
Korrosionsresistentes Alluminiumgehäuse, Leiterplattenschutzbeschichtung gegen Staub und chemische Verunreinigungen
Explosionsschutz nach ATEX
Leistung: 960W
Eingangsspannung: 3x 320-600 VAC (3-phasig)
Eingangsspannung: 2x 380-600VAC (2-phasig)
Ausgangsspannung: 24VDC
Ausgangsstrom: 40A
Effizienz: >92%
Arbeitstemperatur: -25 bis +65°C
Maße: 121x255x117,3mm
SIQ to EN 60950-1, UL/cUL recognized to UL 60950-1 and CSA C22.2 No. 60950-1, CB scheme to IEC 60950-1, EN 50178 / IEC 62103, CISPR 22, EN 55022, CISPR 11, EN 55011, FCC Title 47: Class B, EN 61204-3, EN 55024, EN 61000-6-2, IEC 61000-4-2, -3, -4, -5, -6, -8, -11, -12, IEC/EN 61000-3-2, Class A, IEC/EN 61000-3-3
Power Boost von 150% für 5 Sekunden,
Korrosionsresistentes Alluminiumgehäuse, Leiterplattenschutzbeschichtung gegen Staub und chemische Verunreinigungen
Explosionsschutz nach ATEX
Leistung: 960W
Eingangsspannung: 3x 320-600 VAC (3-phasig)
Eingangsspannung: 2x 380-600VAC (2-phasig)
Ausgangsspannung: 24VDC
Ausgangsstrom: 40A
Effizienz: >92%
Arbeitstemperatur: -25 bis +65°C
Maße: 121x255x117,3mm
SIQ to EN 60950-1, UL/cUL recognized to UL 60950-1 and CSA C22.2 No. 60950-1, CB scheme to IEC 60950-1, EN 50178 / IEC 62103, CISPR 22, EN 55022, CISPR 11, EN 55011, FCC Title 47: Class B, EN 61204-3, EN 55024, EN 61000-6-2, IEC 61000-4-2, -3, -4, -5, -6, -8, -11, -12, IEC/EN 61000-3-2, Class A, IEC/EN 61000-3-3
Details
- Manufacturer Delta Electronics
- Product group DIN Rail Power Supplies
- Article number DRP024V960W3BN
- Series DRP
- Status Discontinued
Technical data
- Type DIN Rail
- Power 960 W
- Input Voltage 320 - 600 V
- Output Voltage 24 V
- Features 3 Phase
- Length 121 mm
- Width 255 mm
- Height 117.3 mm
- Min. operating temperature -25 °C
- Max. operating temperature 85 °C
- Weight 2.6 g
