Product description

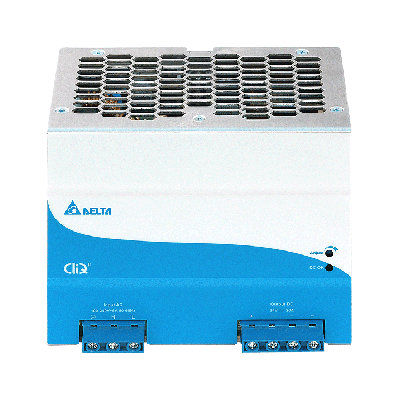

CliQ DIN Rail mit ATEX Zulassung und Power Boost von 150% für 5 Sekunden und 200% für 2 Sekunden
Leistung: 480W
Eingangsspannung: 85-264VAC
Eingangsspannung: 120-375VDC
Ausgangsspannung: 24VDC
Ausgangsstrom: 20A
Gehäuse: 121,0x144,0x118,6mm
Arbeitstemperaturbereich: -25 bis +75°C
EN 50178 / IEC 62103, EN60950-1, UL60950-1, mit ATEX Zulassung cCSAus to CSA C22.2 No. 213-M1987 and ANSI / ISA 12.12.01:2007; Class I, Division 2, Group A, B, C, D T4, Ta= -20°C to +80°C (> +50°C derating)
EN 60079-0:2009, EN 60079-15:2010 ( II 3G Ex nA IIC T4 Gc, Ta= -20°C to +80°C (> +50°C derating)) EN 55032, EN 55011, EN 55024, EN 61000-6-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-4-12, IEC/EN 61000-3-2, IEC/EN 61000-3-3
Leistung: 480W
Eingangsspannung: 85-264VAC
Eingangsspannung: 120-375VDC
Ausgangsspannung: 24VDC
Ausgangsstrom: 20A
Gehäuse: 121,0x144,0x118,6mm
Arbeitstemperaturbereich: -25 bis +75°C
EN 50178 / IEC 62103, EN60950-1, UL60950-1, mit ATEX Zulassung cCSAus to CSA C22.2 No. 213-M1987 and ANSI / ISA 12.12.01:2007; Class I, Division 2, Group A, B, C, D T4, Ta= -20°C to +80°C (> +50°C derating)
EN 60079-0:2009, EN 60079-15:2010 ( II 3G Ex nA IIC T4 Gc, Ta= -20°C to +80°C (> +50°C derating)) EN 55032, EN 55011, EN 55024, EN 61000-6-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-4-12, IEC/EN 61000-3-2, IEC/EN 61000-3-3
Details
- Manufacturer Delta Electronics
- Product group DIN Rail Power Supplies
- Article number DRP024V480W1BN
- Series DRP
- Status Discontinued
Technical data
- Type DIN Rail
- Power 480 W
- Input Voltage 85 - 264 V
- Output Voltage 24 V
- Length 121 mm
- Width 144 mm
- Height 118.6 mm
- Min. operating temperature -25 °C
- Max. operating temperature 75 °C
- Weight 1.37 g
