AA-480-48-44
Peltier Cooler | Air-To-Air | 480 W | 48 V
Product description

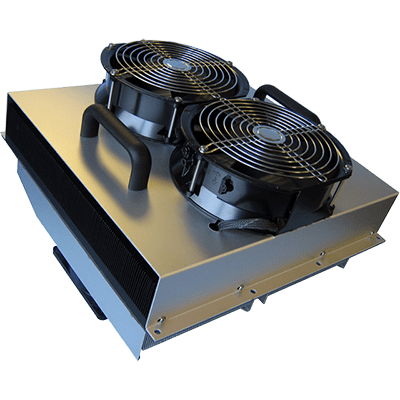

The Outdoor Cooler AA-480-48-44 is a ruggedized Air-to-Air peltier cooler that uses impingement flow to transfer heat in electronic cabinets. Heat is absorbed and dissipated through high density heat exchangers equipped with air ducted shrouds and brand name fans. Custom designed thermoelectric cooler modules pump the heat and achieve a high coefficient of performance (COP) to minimize power consumption. Designed to pass rigorous Telcordia test requirements such as earthquake resistance, salt fog, wind-driven rain, high temperature exposure and dust contaminants, this series utilizes world class components such as brand fans with the highest degree of environmental protection and lifetime guaranteed waterproof connectors, heavy duty anodization on the high-density heat sinks, overheat protection, and double environmental seals for the thermoelectric modules. The thermoelectric cooler has a cooling capacity of 480 W.
Features:
- Meets Telcordia requirements
- Environmentally friendly solid-state operation
- No compressor or CFC refrigerants
- Optional bi-polar thermostatic control
Laird Part Number: 43700000224000
Features:
- Meets Telcordia requirements
- Environmentally friendly solid-state operation
- No compressor or CFC refrigerants
- Optional bi-polar thermostatic control
Laird Part Number: 43700000224000
Details
- Manufacturer Tark Thermal Solutions
- Product group Peltier Cooler
- Article number AA-480-48-44
- Series Outdoor Cooler
- Status Active
Technical data
- Qc Max 480 W
- ΔT Max 37 °C
- Supply Voltage 48 V
- Heat transfer type Air-To-Air
- Heat transfer cold side Convection
- Heat transfer hot side Convection
- Length 330 mm
- Width 330 mm
- Height 225.3 mm
- Min. operating temperature -40 °C
- Max. operating temperature 55 °C
- Weight 0.01 g
