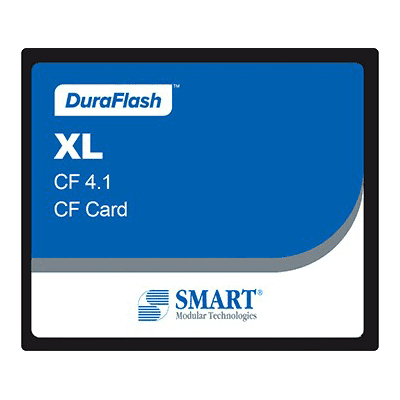

XL Series
All articles of the XL series by SMART Modular Technologies
|
|
|||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 1GB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 1GB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 1GB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 1GB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 2GB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 2GB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 2GB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 2GB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 4GB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 4GB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 8GB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 8GB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 128MB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 128MB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 256MB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 256MB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 256MB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 256MB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 512MB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 512MB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 512MB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | No | 36.4 mm | 42.8 mm | 3.3 mm | – | 70 °C | 0.01 g | |
| SMART Modular Technologies | XL | CF 4.1 | SLC | PCMCIA / IDE | 512MB | 12 MB/s | 30 MB/s | 3,3 | 5 V | 4374870 | 160G/1ms | 325G/2ms | 15G Peak-to-Peak | Yes | 36.4 mm | 42.8 mm | 3.3 mm | -40 °C | 85 °C | 0.01 g |
