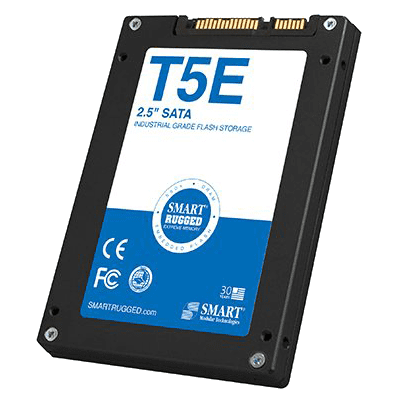

T5E Series

All articles of the T5E series by SMART Modular Technologies


HRCA2P0040JC001 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 40GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	40 GB	291 MB/s	223 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0040JCCC1 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 40GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	40 GB	291 MB/s	223 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0040JI001 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 40GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	40 GB	291 MB/s	223 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P0040JICC1 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 40GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	40 GB	291 MB/s	223 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P0080JC001 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 80GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	80 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0080JCCC1 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 80GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	80 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0080JI001 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 80GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	80 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P0080JICC1 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 80GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	80 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P0120HC001 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 120GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	120 GB	143 MB/s	147 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0120HCCC1 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 120GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	120 GB	143 MB/s	147 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0120HI001 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 120GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	120 GB	143 MB/s	147 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P0120HICC1 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 120GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	120 GB	143 MB/s	147 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P0160JC001 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 160GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	160 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0160JCCC1 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 160GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	160 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0160JI001 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 160GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	160 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P0160JICC1 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 160GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	160 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P0240HC001 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 240GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	240 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0240HCCC1 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 240GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	240 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0240HI001 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 240GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	240 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P0240HICC1 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 240GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	240 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P0320JC001 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 320GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	320 GB	487 MB/s	380 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0320JCCC1 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 320GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	320 GB	487 MB/s	380 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0320JI001 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 320GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	320 GB	487 MB/s	380 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P0320JICC1 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 320GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	320 GB	487 MB/s	380 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P0480HC001 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 480GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	480 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0480HCCC1 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 480GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	480 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0480HI001 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 480GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	480 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P0480HICC1 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 480GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	480 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P0640JC001 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 640GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	640 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0640JCCC1 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 640GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	640 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0640JI001 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 640GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	640 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P0640JICC1 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 640GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	640 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P0960HC001 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 960GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	960 GB	483 MB/s	425 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0960HCCC1 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 960GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	960 GB	483 MB/s	425 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P0960HI001 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 960GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	960 GB	483 MB/s	425 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P0960HICC1 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 960GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	960 GB	483 MB/s	425 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P1280JC001 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 1280GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	1280 GB	338 MB/s	449 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P1280JCCC1 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 1280GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	1280 GB	338 MB/s	449 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P1280JI001 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 1280GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	1280 GB	338 MB/s	449 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P1280JICC1 T5E \| Rugged 2.5" SATA SSD \| pSLC \| 1280GB	SMART Modular Technologies	T5E	2.5 Inch	pSLC	SATA 3.0 6Gb/s	1280 GB	338 MB/s	449 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P1920HC001 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 1920GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	1920 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P1920HCCC1 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 1920GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	1920 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P1920HI001 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 1920GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	1920 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P1920HICC1 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 1920GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	1920 GB	–	–	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P3840HC001 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 3840GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	3840 GB	488 MB/s	498 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P3840HCCC1 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 3840GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	3840 GB	488 MB/s	498 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	No	Yes	Yes	No	100 mm	69.85 mm	7 mm	–	70 °C	0.01 g
HRCA2P3840HI001 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 3840GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	3840 GB	488 MB/s	498 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
HRCA2P3840HICC1 T5E \| Rugged 2.5" SATA SSD \| 3D TLC \| 3840GB	SMART Modular Technologies	T5E	2.5 Inch	3D TLC	SATA 3.0 6Gb/s	3840 GB	488 MB/s	498 MB/s	5 V	2000000	50g half-sine, 11 ms	16.4 g rms 10-2000 Hz	Yes	Yes	Yes	No	100 mm	69.85 mm	7 mm	-40 °C	85 °C	0.01 g
