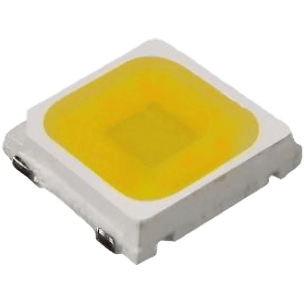

3030H Series
All articles of the 3030H series by Seoul Semiconductor
|
|
||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seoul Semiconductor | 3030H | Cool White | 6500 K | 70 | 12732 mcd | 40 lm | 228 lm/W | 0.18 W | 2.7 V | 65 mA | 200 mA | 120 ° | 0.53 µmol/s | No | 3 mm | 3 mm | 0.66 mm | -40 °C | 85 °C | SMD 3030 | 0.01 g | |
| Seoul Semiconductor | 3030H | Cool White | 5700 K | 70 | 12732 mcd | 41 lm | 234 lm/W | 0.18 W | 2.7 V | 65 mA | 200 mA | 120 ° | 0.53 µmol/s | No | 3 mm | 3 mm | 0.66 mm | -40 °C | 85 °C | SMD 3030 | 0.01 g | |
| Seoul Semiconductor | 3030H | Cool White | 5000 K | 70 | 13051 mcd | 42 lm | 239 lm/W | 0.18 W | 2.7 V | 65 mA | 200 mA | 120 ° | 0.53 µmol/s | No | 3 mm | 3 mm | 0.66 mm | -40 °C | 85 °C | SMD 3030 | 0.01 g | |
| Seoul Semiconductor | 3030H | Natural White | 4000 K | 70 | 13051 mcd | 42 lm | 239 lm/W | 0.18 W | 2.7 V | 65 mA | 200 mA | 120 ° | 0.52 µmol/s | No | 3 mm | 3 mm | 0.66 mm | -40 °C | 85 °C | SMD 3030 | 0.01 g | |
| Seoul Semiconductor | 3030H | Warm White | 3500 K | 70 | 13051 mcd | 41 lm | 234 lm/W | 0.18 W | 2.7 V | 65 mA | 200 mA | 120 ° | 0.52 µmol/s | No | 3 mm | 3 mm | 0.66 mm | -40 °C | 85 °C | SMD 3030 | 0.01 g | |
| Seoul Semiconductor | 3030H | Warm White | 3000 K | 70 | 12414 mcd | 40 lm | 228 lm/W | 0.18 W | 2.7 V | 65 mA | 200 mA | 120 ° | 0.5 µmol/s | No | 3 mm | 3 mm | 0.66 mm | -40 °C | 85 °C | SMD 3030 | 0.01 g | |
| Seoul Semiconductor | 3030H | Warm White | 2700 K | 70 | 12096 mcd | 39 lm | 222 lm/W | 0.18 W | 2.7 V | 65 mA | 200 mA | 120 ° | 0.5 µmol/s | No | 3 mm | 3 mm | 0.66 mm | -40 °C | 85 °C | SMD 3030 | 0.01 g | |
| Seoul Semiconductor | 3030H | Cool White | 6500 K | 70 | 12732 mcd | 40 lm | 228 lm/W | 0.18 W | 2.7 V | 65 mA | 200 mA | 120 ° | 0.53 µmol/s | No | 3 mm | 3 mm | 0.66 mm | -40 °C | 85 °C | SMD 3030 | 0.01 g | |
| Seoul Semiconductor | 3030H | Cool White | 5700 K | 70 | 12732 mcd | 41 lm | 234 lm/W | 0.18 W | 2.7 V | 65 mA | 200 mA | 120 ° | 0.53 µmol/s | No | 3 mm | 3 mm | 0.66 mm | -40 °C | 85 °C | SMD 3030 | 0.01 g | |
| Seoul Semiconductor | 3030H | Cool White | 5000 K | 70 | 13051 mcd | 42 lm | 239 lm/W | 0.18 W | 2.7 V | 65 mA | 200 mA | 120 ° | 0.53 µmol/s | No | 3 mm | 3 mm | 0.66 mm | -40 °C | 85 °C | SMD 3030 | 0.01 g | |
| Seoul Semiconductor | 3030H | Natural White | 4000 K | 70 | 13051 mcd | 42 lm | 239 lm/W | 0.18 W | 2.7 V | 65 mA | 200 mA | 120 ° | 0.52 µmol/s | No | 3 mm | 3 mm | 0.66 mm | -40 °C | 85 °C | SMD 3030 | 0.01 g | |
| Seoul Semiconductor | 3030H | Warm White | 3500 K | 70 | 13051 mcd | 41 lm | 234 lm/W | 0.18 W | 2.7 V | 65 mA | 200 mA | 120 ° | 0.52 µmol/s | No | 3 mm | 3 mm | 0.66 mm | -40 °C | 85 °C | SMD 3030 | 0.01 g | |
| Seoul Semiconductor | 3030H | Warm White | 3000 K | 70 | 12414 mcd | 40 lm | 228 lm/W | 0.18 W | 2.7 V | 65 mA | 200 mA | 120 ° | 0.5 µmol/s | No | 3 mm | 3 mm | 0.66 mm | -40 °C | 85 °C | SMD 3030 | 0.01 g | |
| Seoul Semiconductor | 3030H | Warm White | 2700 K | 70 | 12096 mcd | 39 lm | 222 lm/W | 0.18 W | 2.7 V | 65 mA | 200 mA | 120 ° | 0.5 µmol/s | No | 3 mm | 3 mm | 0.66 mm | -40 °C | 85 °C | SMD 3030 | 0.01 g |
