SOPN-MUAAP4110

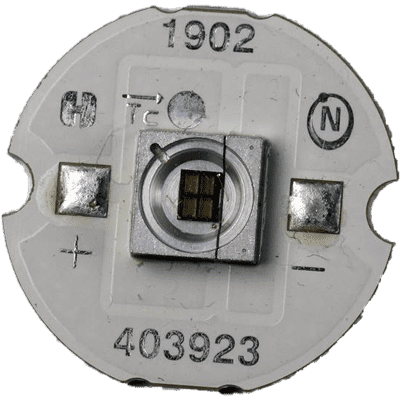

UV-C LED Module | 275 nm | AAP LED on PCB
Product description
UVC Modul
Wavelenghts: 275nm
PO: typ. 60mW@600mA
Vf. typ. 6,75V
Package: d=20mm
Viewing angle: 130°
Wavelenghts: 275nm
PO: typ. 60mW@600mA
Vf. typ. 6,75V
Package: d=20mm
Viewing angle: 130°
Details
- Manufacturer Neumüller Elektronik
- Product group UV LED Modules
- Article number SOPN-MUAAP4110
- Status Discontinued
Technical data
- Wavelenghts 275 nm
- UV Range UV-C
- Optical Output Power typ. 60 mW
- FWHM 11 nm
- If 600 mA
- Forward Voltage 6.4 V
- Viewing Angle 120 °
- Dimensions d=20 mm
- Min. operating temperature -10 °C
- Max. operating temperature 85 °C
- Housing AAP6363
- Weight 0.01 g
