AW06 Series

All articles of the AW06 series by Anway Electric

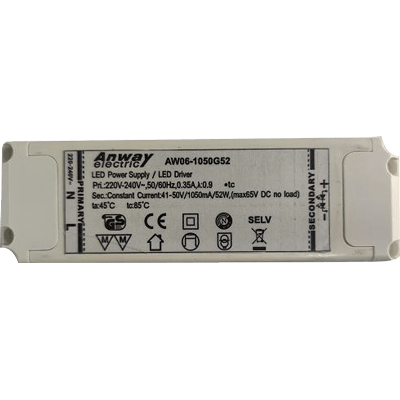

AW06-1050G52 LED Driver \| 52 W \| 41-50 V \| 1050 mA \| CC	Anway Electric	Constant Current	60 W	1050 mA	–	41 - 50 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.9	137 mm	42.5 mm	29.5 mm	-20 °C	45 °C	Kunststoff§Plastic	0.15 g
AW06-1050Z30 LED Driver \| 30 W \| 24-30 V \| 1050 mA \| CC	Anway Electric	Constant Current	30 W	1050 mA	–	24 - 30 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.97	127 mm	42.7 mm	25 mm	-20 °C	45 °C	Kunststoff§Plastic	0.11 g
AW06-1050Z42 LED Driver \| 42 W \| 34-42 V \| 1050 mA \| CC	Anway Electric	Constant Current	50 W	1050 mA	–	34 - 42 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.96	127 mm	42.7 mm	25 mm	-20 °C	45 °C	Kunststoff§Plastic	0.11 g
AW06-1250G52 LED Driver \| 52 W \| 34-42 V \| 1250 mA \| CC	Anway Electric	Constant Current	60 W	1250 mA	–	34 - 42 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.9	137 mm	42.5 mm	29.5 mm	-20 °C	45 °C	Kunststoff§Plastic	0.15 g
AW06-1250P60 LED Driver \| 60 W \| 40-48 V \| 1250 mA \| CC	Anway Electric	Constant Current	60 W	1250 mA	–	40 - 48 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.95	166 mm	50 mm	32 mm	-20 °C	45 °C	Kunststoff§Plastic	0.17 g
AW06-1250Z42 LED Driver \| 42 W \| 28-34 V \| 1250 mA \| CC	Anway Electric	Constant Current	50 W	1250 mA	–	28 - 34 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.96	127 mm	42.7 mm	25 mm	-20 °C	45 °C	Kunststoff§Plastic	0.11 g
AW06-12SL15 LED Power Supply \| 15 W \| 12 V \| 1250 mA \| CV	Anway Electric	Constant Voltage	20 W	350 mA	12 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.5	100 mm	46.5 mm	15 mm	-20 °C	45 °C	–	0.05 g
AW06-12SL20 LED Power Supply \| 20 W \| 12 V \| 1666 mA \| CV	Anway Electric	Constant Voltage	20 W	350 mA	12 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.5	128 mm	50.5 mm	15.5 mm	-20 °C	45 °C	–	0.07 g
AW06-12VC12 LED Power Supply \| 12 W \| 12 V \| 1000 mA \| CV	Anway Electric	Constant Voltage	20 W	350 mA	12 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	80 mm	38 mm	22.5 mm	-20 °C	45 °C	Kunststoff§Plastic	0.05 g
AW06-12VC15 LED Power Supply \| 15 W \| 12 V \| 1250 mA \| CV	Anway Electric	Constant Voltage	15 W	350 mA	12 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	80 mm	38 mm	22.5 mm	-20 °C	45 °C	Kunststoff§Plastic	0.05 g
AW06-12VD20 LED Power Supply \| 20 W \| 12 V \| 1670 mA \| CV	Anway Electric	Constant Voltage	20 W	350 mA	12 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	95 mm	55 mm	37 mm	-20 °C	40 °C	Kunststoff§Plastic	0.09 g
AW06-12VE15 LED Power Supply \| 15 W \| 12 V \| 1250 mA \| CV	Anway Electric	Constant Voltage	20 W	350 mA	12 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	122 mm	39 mm	18 mm	-20 °C	45 °C	–	0.07 g
AW06-12VN80 LED Power Supply \| 80 W \| 12 V \| 6600 mA \| CV	Anway Electric	Constant Voltage	100 W	–	12 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.9	187 mm	58 mm	31 mm	-20 °C	45 °C	Kunststoff§Plastic	0.01 g
AW06-12VP60 LED Power Supply \| 60 W \| 12 V \| 5000 mA \| CV	Anway Electric	Constant Voltage	60 W	–	12 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.9	166 mm	50 mm	32 mm	-20 °C	45 °C	Kunststoff§Plastic	0.01 g
AW06-12VR07 LED Power Supply \| 7 W \| 12 V \| 580 mA \| CV	Anway Electric	Constant Voltage	10 W	350 mA	12 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	80.4 mm	38.5 mm	17.5 mm	-20 °C	45 °C	Kunststoff§Plastic	0.04 g
AW06-12VXL30 LED Power Supply \| 30 W \| 12 V \| 2500 mA \| CV	Anway Electric	Constant Voltage	30 W	–	12 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.9	150 mm	44.5 mm	29 mm	-20 °C	45 °C	Kunststoff§Plastic	0.17 g
AW06-12VXL40 LED Power Supply \| 40 W \| 12 V \| 3300 mA \| CV	Anway Electric	Constant Voltage	40 W	–	12 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.9	160 mm	44.5 mm	29 mm	-20 °C	40 °C	Kunststoff§Plastic	0.01 g
AW06-12VXM20 LED Power Supply \| 20 W \| 12 V \| 1660 mA \| CV	Anway Electric	Constant Voltage	20 W	–	12 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.9	135 mm	44.5 mm	29 mm	-20 °C	45 °C	Kunststoff§Plastic	0.01 g
AW06-1500P60 LED Driver \| 60 W \| 33-40 V \| 1500 mA \| CC	Anway Electric	Constant Current	60 W	1500 mA	–	33 - 40 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.95	166 mm	50 mm	32 mm	-20 °C	45 °C	Kunststoff§Plastic	0.17 g
AW06-24SL15 LED Power Supply \| 15 W \| 24 V \| 625 mA \| CV	Anway Electric	Constant Voltage	20 W	350 mA	24 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	99 mm	46 mm	15.5 mm	-20 °C	45 °C	–	0.05 g
AW06-24SL20 LED Power Supply \| 20 W \| 24 V \| 833 mA \| CV	Anway Electric	Constant Voltage	20 W	350 mA	24 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.9	128 mm	50 mm	15.5 mm	-20 °C	45 °C	–	0.08 g
AW06-24VC12 LED Power Supply \| 12 W \| 24 V \| 500 mA \| CV	Anway Electric	Constant Voltage	20 W	350 mA	24 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	80 mm	38 mm	22.5 mm	-20 °C	45 °C	–	0.05 g
AW06-24VD12 LED Power Supply \| 12 W \| 24 V \| 500 mA \| CV	Anway Electric	Constant Voltage	20 W	350 mA	24 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	63 mm	27 mm	78.7 mm	-20 °C	45 °C	Kunststoff§Plastic	0.07 g
AW06-24VD20 LED Power Supply \| 20 W \| 24 V \| 840 mA \| CV	Anway Electric	Constant Voltage	20 W	350 mA	24 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	95 mm	55 mm	74 mm	-20 °C	40 °C	Kunststoff§Plastic	0.01 g
AW06-24VD30 LED Power Supply \| 30 W \| 24 V \| 1250 mA \| CV	Anway Electric	Constant Voltage	30 W	350 mA	24 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.9	95 mm	55 mm	74 mm	-20 °C	35 °C	Kunststoff§Plastic	0.01 g
AW06-24VE15 LED Power Supply \| 15 W \| 24 V \| 625 mA \| CV	Anway Electric	Constant Voltage	20 W	350 mA	24 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	122 mm	39 mm	18 mm	-20 °C	45 °C	–	0.07 g
AW06-24VN80 LED Power Supply \| 80 W \| 24 V \| 3300 mA \| CV	Anway Electric	Constant Voltage	100 W	–	24 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.9	187 mm	58 mm	31 mm	-20 °C	45 °C	Kunststoff§Plastic	0.01 g
AW06-24VP50 LED Power Supply \| 50 W \| 24 V \| 2080 mA \| CV	Anway Electric	Constant Voltage	50 W	350 mA	24 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.9	166 mm	50 mm	32 mm	-20 °C	45 °C	–	0.18 g
AW06-24VP60 LED Power Supply \| 60 W \| 24 V \| 2500 mA \| CV	Anway Electric	Constant Voltage	60 W	–	24 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.9	166 mm	50 mm	32 mm	-20 °C	45 °C	Kunststoff§Plastic	0.01 g
AW06-24VR07 LED Power Supply \| 7 W \| 24 V \| 300 mA \| CV	Anway Electric	Constant Voltage	10 W	350 mA	24 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	80.4 mm	38.5 mm	17.5 mm	-20 °C	45 °C	–	0.04 g
AW06-24VXL40 LED Power Supply \| 40 W \| 24 V \| 1660 mA \| CV	Anway Electric	Constant Voltage	40 W	–	24 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.9	150 mm	44.5 mm	29 mm	-20 °C	45 °C	Kunststoff§Plastic	0.17 g
AW06-24VXM25 LED Power Supply \| 25 W \| 24 V \| 1050 mA \| CV	Anway Electric	Constant Voltage	25 W	–	24 VDC	–	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.9	135 mm	38 mm	29 mm	-20 °C	45 °C	Kunststoff§Plastic	0.11 g
AW06-300C12 LED Driver \| 12 W \| 20-40 V \| 300 mA \| CC	Anway Electric	Constant Current	20 W	300 mA	–	20 - 40 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	80 mm	38 mm	22.5 mm	-20 °C	45 °C	Kunststoff§Plastic	0.05 g
AW06-300R07 LED Driver \| 7 W \| 12-22 V \| 300 mA \| CC	Anway Electric	Constant Current	10 W	300 mA	–	12 - 24 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	80.4 mm	38.5 mm	17.5 mm	-20 °C	45 °C	Kunststoff§Plastic	0.04 g
AW06-350C12 LED Driver \| 12 W \| 16-34 V \| 350 mA \| CC	Anway Electric	Constant Current	20 W	350 mA	–	16 - 34 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	80 mm	38 mm	22.5 mm	-20 °C	45 °C	Kunststoff§Plastic	0.05 g
AW06-350E15 LED Driver \| 15 W \| 22-43 V \| 350 mA \| CC	Anway Electric	Constant Current	20 W	350 mA	–	22 - 43 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	122 mm	39 mm	18 mm	-20 °C	45 °C	Kunststoff§Plastic	0.06 g
AW06-350R07 LED Driver \| 7 W \| 10-20 V \| 350 mA \| CC	Anway Electric	Constant Current	10 W	350 mA	–	10 - 20 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	38.5 mm	80.4 mm	17.5 mm	-20 °C	45 °C	Kunststoff§Plastic	0.04 g
AW06-500C12 LED Driver \| 12 W \| 12-24 V \| 500 mA \| CC	Anway Electric	Constant Current	20 W	500 mA	–	12 - 24 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	80 mm	38 mm	22.5 mm	-20 °C	45 °C	Kunststoff§Plastic	0.05 g
AW06-500E15 LED Driver \| 15 W \| 15-30 V \| 500 mA \| CC	Anway Electric	Constant Current	20 W	500 mA	–	15 - 30 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	122 mm	39 mm	18 mm	-20 °C	45 °C	Kunststoff§Plastic	0.06 g
AW06-500J20 LED Driver \| 20 W \| 20-40 V \| 500 mA \| CC	Anway Electric	Constant Current	20 W	500 mA	–	20 - 40 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.97	79 mm	42.5 mm	25 mm	-20 °C	40 °C	Kunststoff§Plastic	0.11 g
AW06-500R07 LED Driver \| 7 W \| 7-14 V \| 500 mA \| CC	Anway Electric	Constant Current	10 W	500 mA	–	7 - 14 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	80.4 mm	80.4 mm	17.5 mm	-20 °C	45 °C	Kunststoff§Plastic	0.04 g
AW06-500Z25 LED Driver \| 25 W \| 40-50 V \| 500 mA \| CC	Anway Electric	Constant Current	30 W	500 mA	–	40 - 50 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.97	127 mm	42.7 mm	25 mm	-20 °C	45 °C	Kunststoff§Plastic	0.11 g
AW06-500Z30 LED Driver \| 25 W \| 48-60 V \| 500 mA \| CC	Anway Electric	Constant Current	30 W	500 mA	–	48 - 60 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.97	127.2 mm	42.7 mm	25 mm	-20 °C	45 °C	Kunststoff§Plastic	0.11 g
AW06-700C12 LED Driver \| 12 W \| 9-18 V \| 700 mA \| CC	Anway Electric	Constant Current	20 W	700 mA	–	9 - 18 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	80 mm	38 mm	22.5 mm	-20 °C	45 °C	Kunststoff§Plastic	0.05 g
AW06-700E15 LED Driver \| 15 W \| 11-22 V \| 700 mA \| CC	Anway Electric	Constant Current	20 W	700 mA	–	11 - 22 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	122 mm	39 mm	18 mm	-20 °C	45 °C	Kunststoff§Plastic	0.06 g
AW06-700J20 LED Driver \| 20 W \| 20-29 V \| 700 mA \| CC	Anway Electric	Constant Current	20 W	700 mA	–	20 - 29 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.97	79 mm	42.5 mm	25 mm	-20 °C	45 °C	Kunststoff§Plastic	0.11 g
AW06-700R07 LED Driver \| 7 W \| 3-11 V \| 700 mA \| CC	Anway Electric	Constant Current	10 W	700 mA	–	3 - 11 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.8	80.4 mm	38.5 mm	17.5 mm	-20 °C	45 °C	Kunststoff§Plastic	0.04 g
AW06-700Z25 LED Driver \| 25 W \| 25-36 V \| 700 mA \| CC	Anway Electric	Constant Current	30 W	700 mA	–	25 - 36 VDC	220 - 240 VAC	No	No	Yes	No	85 °C	20 IP	0.97	127 mm	42.7 mm	25 mm	-20 °C	45 °C	Kunststoff§Plastic	0.11 g
