Product description

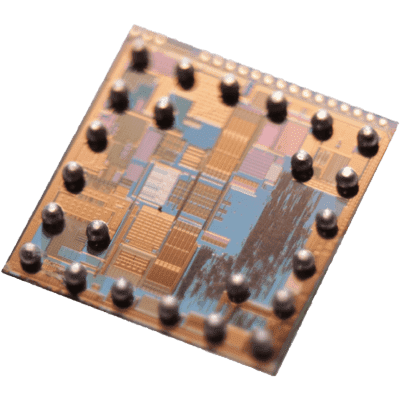

Time-of-Flight (TOF) Imager Chip
- Resolution: 8x8 Pixel
- Framrate: up to 8.000fps
- Integrated LED Driverer
- Selectable modulation frequencies: 0,625...20MHz
- Ambient light suppression: up to 100 kLux
- Temperature range: -40...+85°C
- 24pin CSP (Chip Scale Packaging)
- Chip Revision: 001
- Resolution: 8x8 Pixel
- Framrate: up to 8.000fps
- Integrated LED Driverer
- Selectable modulation frequencies: 0,625...20MHz
- Ambient light suppression: up to 100 kLux
- Temperature range: -40...+85°C
- 24pin CSP (Chip Scale Packaging)
- Chip Revision: 001
Details
- Manufacturer ESPROS Photonics Corporation
- Product group TOF Sensors
- Article number EPC611-CSP24-001
- Series EPC611
- Status Active
Technical data
- Resolution 8x8 Pixel
- Wavelength 550 ... 1000 nm
- Peak Wavelength 850 nm
- Sensitive Area 0.03 mm²
- Interface SPI
- on PCB No
- Length 2.7 mm
- Width 2.78 mm
- Height 0.25 mm
- Min. operating temperature -40 °C
- Max. operating temperature 105 °C
- Housing CSP24
- Weight 0.01 g
