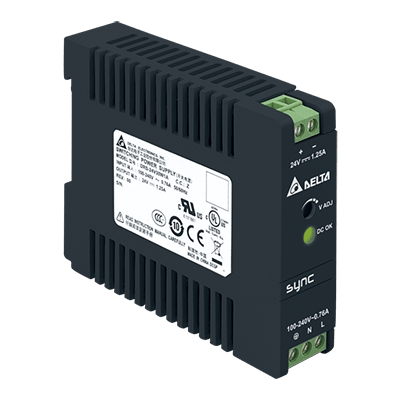

DRS-24V30W1AZ - Delta Electronics

DRS-24V30W1AZ
– Ultra compact size
– Universal AC input voltage and full power up to 55°C
– High Efficiency 88.0% typ. @ 230Vac
– NEC Class 2 / Limited Power Source (LPS) certified
– Overvoltage / Overcurrent / Over Temperature Protections
– Meet Surge Immunity IEC 61000-4-5, Level 4 (CM: 4kV, DM: 2kV)
Manufacturer:
Productgroup: DIN Rail Power SuppliesDIN Rail Power Supplies
Part Number: DRS-24V30W1AZ
Series: DRS
Datasheet: PDF DRS-24V30W1AZ | Delta ElectronicsOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Type: DIN Rail
Power : 30 W
Input Voltage : 85 - 264 V
Output Voltage : 24 V
  Length: 75 mm
  Width: 21 mm
  Heigth: 89.5 mm
  Min. operating temperature: -25 °C
  Max. operating temperature: 71 °C

Hint: current revision of the supplier datasheet is applicable
